    Belt Conveyors

    Belt Conveyors

    Belt Conveyors | Plain Belt & Sidewall Cleated Belt Conveyor

    Efficient, Dust-Free & Flexible Conveying Solutions

    Orchid’s Belt Conveyors include Plain Belt and Sidewall Cleated Belt types. Efficient, dust-free conveying systems for food, pharma, chemical, logistics, and industrial applications.

    Also called Sidewall Belt Conveyors, Cleated Belt Conveyors, Corrugated Sidewall Belts, or Incline Sidewall Cleated Conveyors, these systems provide flexible configurations like horizontal, inclined, and Z-frame layouts for continuous material handling.

    How It Works

    •  Material Loading:Product is fed onto the moving belt (manual, chute, or feeder).
    •  Continuous Conveying:Motor-driven belt moves material smoothly across the conveyor path.
    •  Inclined Transfer (Sidewall Cleated Belts):Cleats and corrugated sidewalls hold material securely on steep inclines.
    •  Material Discharge:Product is discharged at the end point or fed into downstream equipment.

    👉 Ensures continuous, spillage-free, and efficient conveying across industries.

    🟢 Types of Belt Conveyors

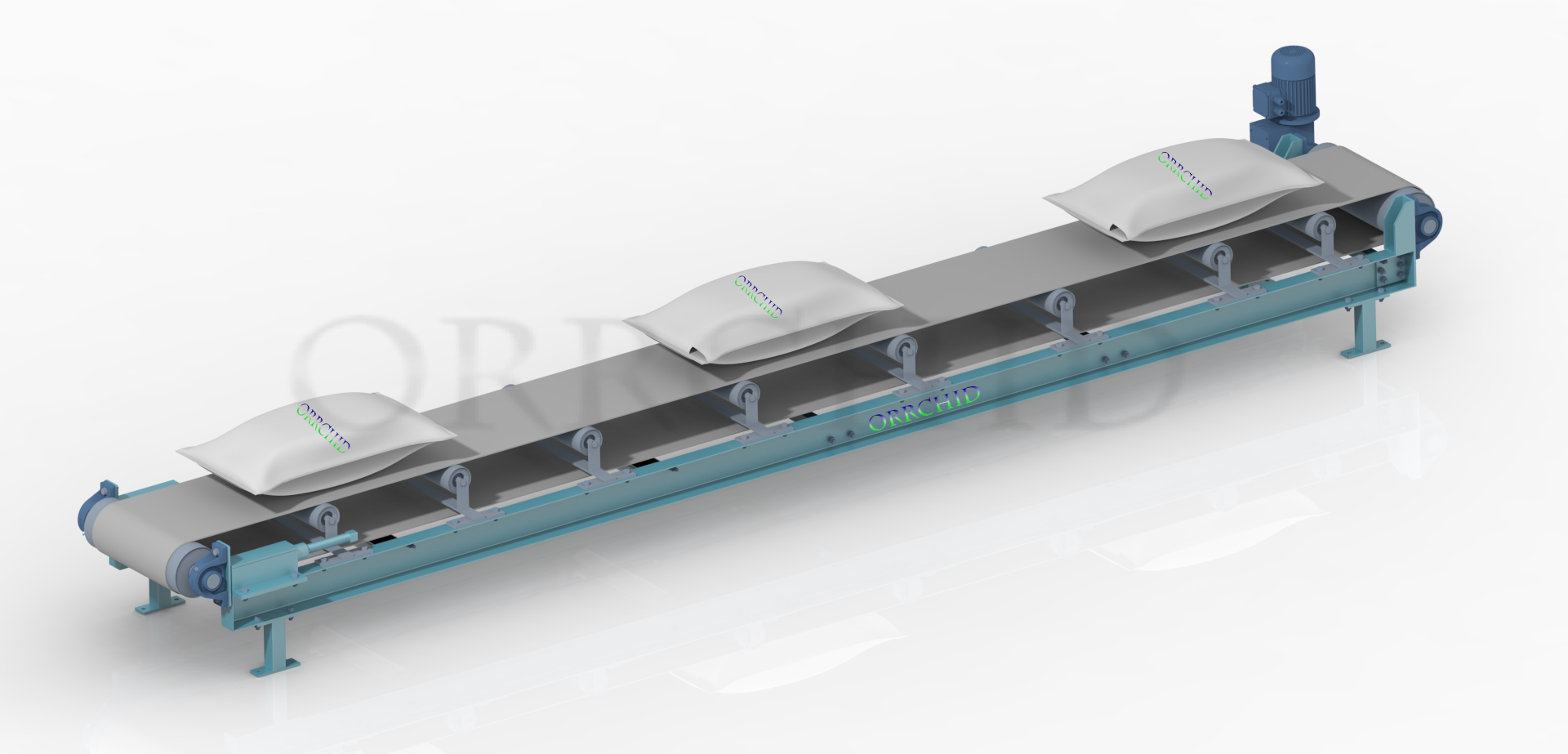

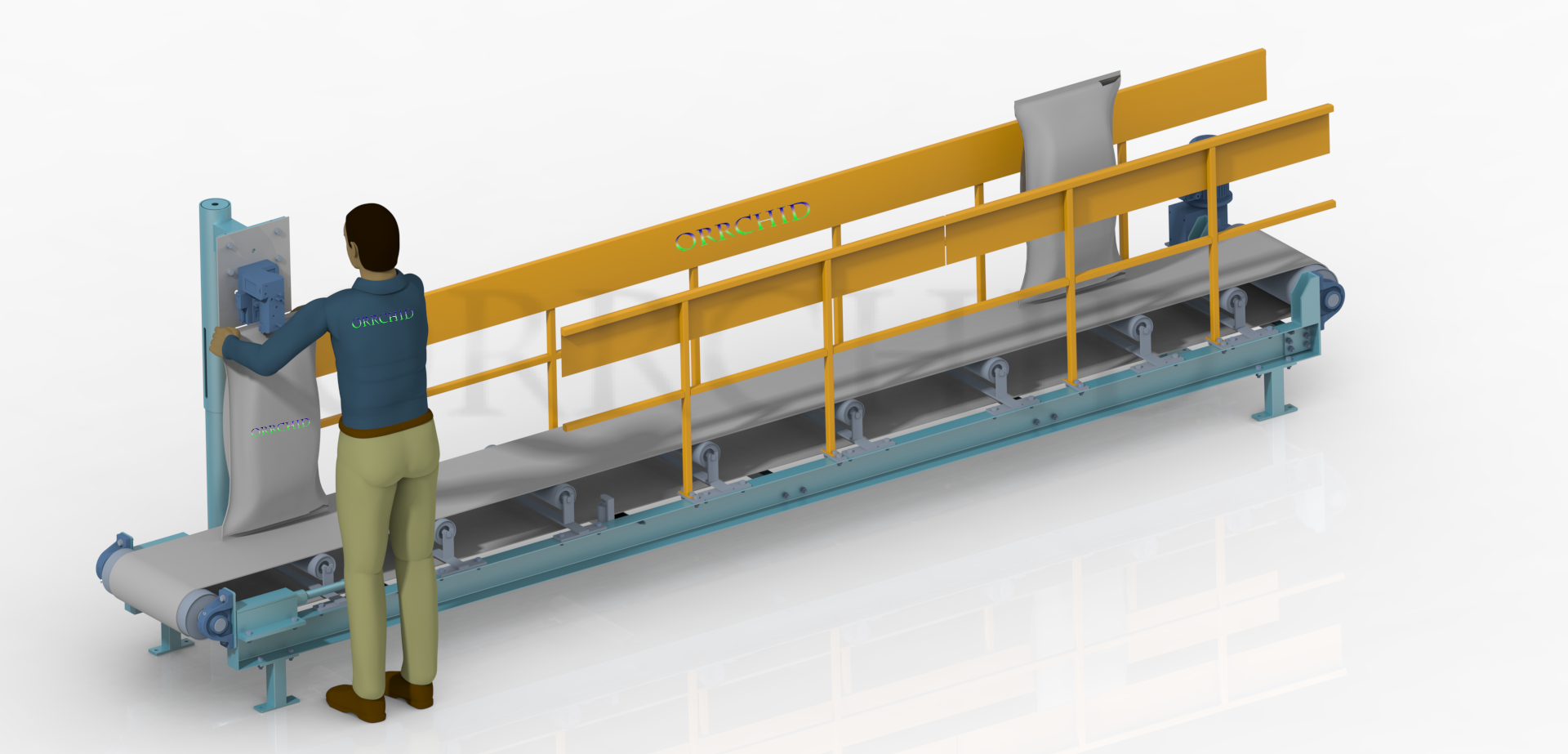

    •  Plain Belt Conveyor:Flat or troughed belt, suitable for cartons, bags, boxes, unit loads; ideal for horizontal or slightly inclined transfer; widely used in logistics, packaging, and warehousing.

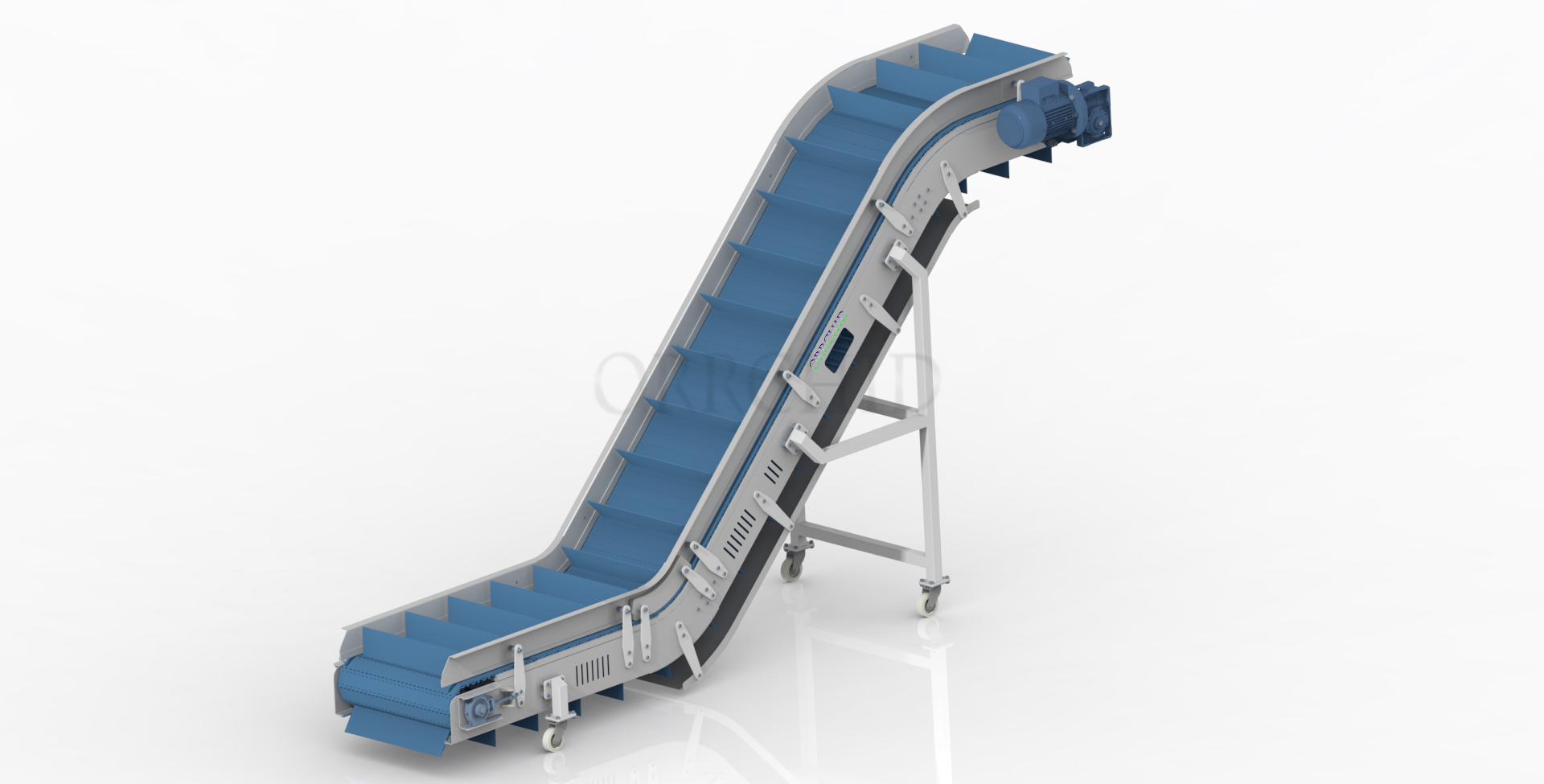

    •  Sidewall Cleated Belt Conveyor:Equipped with corrugated sidewalls and cleats for steep incline or vertical conveying without spillage; ideal for powders, granules, small parts, and bulk solids; space-saving for multi-level layouts.

    Key Features

    •  Available in Plain and Sidewall Cleated designs
    •  Continuous, dust-free, and spillage-free conveying
    •  Customizable length, width, and capacity
    •  Horizontal, inclined, and Z-frame layouts
    •  Belts: PVC, PU, rubber, or food-grade material
    •  Construction: MS, SS304, SS316
    •  Low noise, low maintenance, long service life

    Applications

    •  Food & Beverages:sugar, flour, spices, milk powder, cartons, packaged goods
    •  Pharmaceuticals & Nutraceuticals:powders, tablets, bottles, cartons
    •  Chemicals & Plastics:resins, pigments, calcium carbonate, polymer pellets
    •  Minerals & Construction:sand, cement, fly ash, aggregates
    •  Logistics & Packaging:boxes, bags, cartons, warehouse movement

    Benefits

    •  Reliable and continuous conveying
    •  Sidewall Cleated Belts allow steep incline conveying → saves space
    •  Prevents spillage and contamination
    •  Gentle on fragile products
    •  Flexible layouts: horizontal, inclined, or vertical (Z-frame)
    •  Easy to maintain and energy efficient

    Technical Highlights

    •  Capacity: 10 – 200 m³/hr
    •  Belt Width: 300 – 1500 mm (custom options)
    •  Conveying Distance: Up to 100 m horizontal / 30 m vertical
    •  Types: Plain Belt, Sidewall Cleated Belt
    •  Belt Material: Rubber, PVC, PU, food-grade
    •  Construction: MS, SS304, SS316L
    •  Special Options: Z-frame design, mobile version, flameproof motor

    Download Brochure Download Brochure

    ❓ Final FAQ – Belt Conveyors

    • 1. What is a Belt Conveyor used for?

      👉 Belt Conveyors are used to transport bulk solids, powders, granules, cartons, and packaged goods efficiently and continuously.

    • 2. What is the difference between a Plain Belt Conveyor and a Sidewall Cleated Belt Conveyor?
      • Plain Belt Conveyor → For horizontal/lightly inclined transfer of cartons, bags, and unit loads.
      • Sidewall Cleated Belt Conveyor → For steep incline conveying with corrugated sidewalls and cleats to prevent spillage.
    • 3. What are other names of Sidewall Cleated Belt Conveyor?
      It is also called a Sidewall Belt Conveyor, Cleated Belt Conveyor, Corrugated Sidewall Belt, Incline Sidewall Cleated Conveyor, Z-frame Sidewall Cleated Conveyor, or Belt Conveyor with Side Walls.
    • 4. Which industries use belt conveyors?

      Food, pharma, chemicals, plastics, minerals, packaging, and logistics.

    • 5. Can Belt Conveyors be customized?

      Yes , they can be customized for belt width, capacity, material of construction, and layout (horizontal, inclined, Z-frame).

    • 6. Note

      👉 Orchid’s Belt Conveyors — engineered for efficient, dust-free, and flexible conveying with options for plain belt or sidewall cleated belt designs.
