    Bag Dischargers

    Bag Dischargers

    Dust-Free, Safe & Efficient Bulk Bag Emptying Solutions

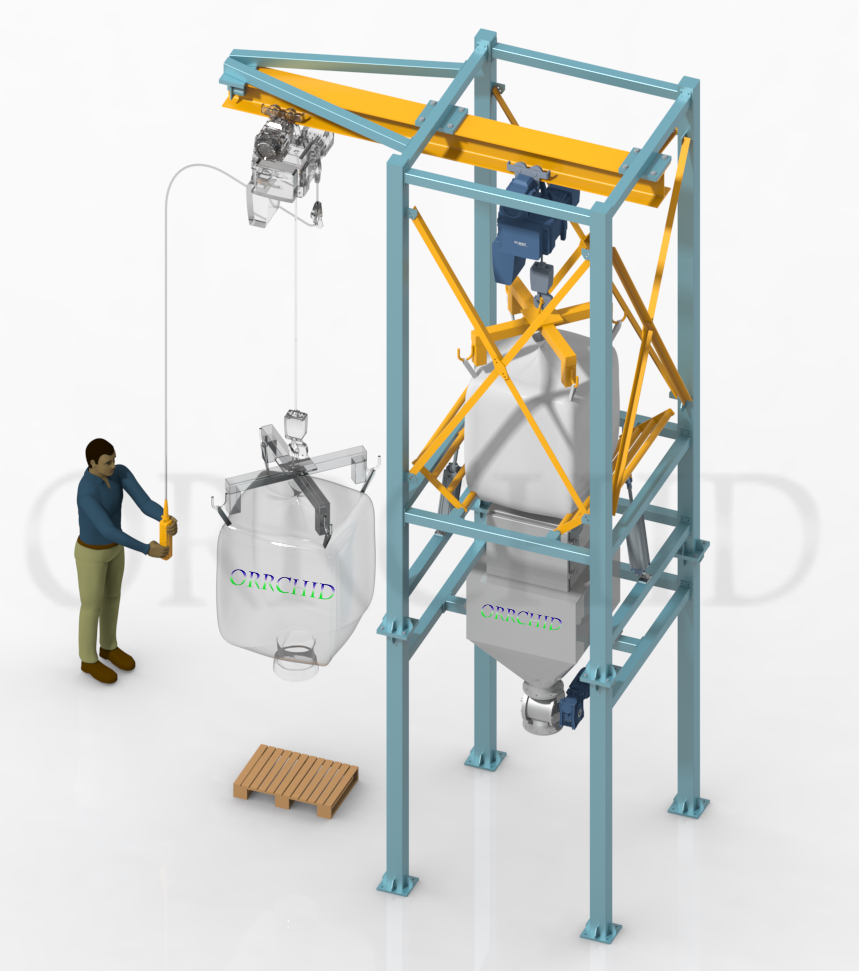

    Orchid’s Bulk / Jumbo Bag Unloading Systems — also called Bulk Bag Dischargers, FIBC Unloaders, or Big Bag Emptying Systems — are engineered for reliable, dust-free discharge of powders, granules, and bulk solids from jumbo bags (500–2000 kg). Built with heavy-duty frames, dust control units, bag massagers, vibrators, and hoist/trolley systems, these unloaders ensure smooth material flow, operator safety, and contamination-free transfer into downstream equipment such as pneumatic conveyors, screw feeders, and mixers.

    How It Works

    • Bag Loading – Jumbo/FIBC bag is lifted with hoist/forklift and placed on the discharger.
    • Sealing & Dust Control – Inflatable neck seals lock the bag spout, preventing leakage.
    • Material Discharge – Product flows via gravity, screw feeder, or pneumatic conveying.
    • Flow Assistance – Massagers/vibrators prevent bridging and rat-holing.
    • Continuous Transfer – Clean and controlled discharge into the next process step.

    👉 Guarantees dust-free, safe, and efficient material handling.

    Key Features

    • Bag Capacity: 500–2000 kg
    • Dust-Free Operation with inflatable neck seals
    • Flow Assistance with bag massagers/vibrators
    • Ergonomic design for operator safety
    • Seamless integration with conveyors, feeders, mixers
    • Automation ready with PLC + HMI controls

    Applications

    • Food & Beverages – Flour, starch, sugar, cocoa, milk powder
    • Pharma & Nutraceuticals – APIs, excipients, fine powders
    • Chemicals & Plastics – Pigments, resins, calcium carbonate
    • Minerals & Construction – Cement, lime, fly ash
    • Agriculture – Fertilizers, additives, seeds

    Benefits

    • Dust-free, contamination-free unloading
    • Smooth material flow without blockages
    • Safer alternative to manual bag cutting
    • Reduces labor & handling costs
    • Compatible with multiple feeding methods
    • Customizable for food, pharma & chemical standards

    Technical Highlights

    • Bag Sizes: 500–2000 kg
    • Feeding: Gravity, screw feeder, pneumatic conveying
    • Construction: MS or SS304/316L
    • Options: Hoist, trolley, agitators, dust collector, flameproof controls
    • Automation: PLC + HMI with recipe storage & alarms
    Download Brochure Download Brochure

    ❓ FAQ – Bag Dischargers

    • 1. What is a Bulk Bag Discharger?

      A Bulk Bag Discharger is a system used to safely unload powders and bulk solids from FIBC or jumbo bags into downstream processing equipment.

    • 2. What materials can be handled using a Bulk Bag Discharger?

      The system can handle powders, granules, flakes, additives, resins, minerals, food ingredients, chemicals, and pharmaceutical materials.

    • 3. How does the system prevent dust generation?

      Inflatable neck seals and enclosed discharge arrangements minimize dust leakage during unloading.

    • 4. Can the Bulk Bag Discharger be integrated with pneumatic conveying systems?

      Yes. The system can be integrated with pneumatic conveying systems, screw feeders, mixers, and packaging equipment.

    • 5. Can difficult-flow materials be handled effectively?

      Yes. Optional bag massagers, vibrators, and agitators help improve flow and prevent material bridging or rat-holing.
