Drag Chain Disc Conveyor

Drag Chain Disc Conveyor

Enclosed & Dust-Free Conveying Solutions

Orchid’s Drag Chain Disc Conveyor offers enclosed, dust-free conveying in both round and square tube designs. Ideal for powders, granules, food, pharma, chemical & industrial applications.

Also known as a Dry Chain Disc Conveyor, Tubular Drag Conveyor, or Chain-Disc Conveyor, it provides dust-free, contamination-free, and energy-efficient transport of bulk materials. Suitable for horizontal, vertical, and inclined conveying, the modular layout ensures unmatched flexibility compared to conventional conveyors.

How It Works

  • Material Feeding – Product is fed into the enclosed round or square tube.
  • Chain & Disc Movement – A robust chain with evenly spaced discs gently pushes the product through the tube.
  • Enclosed Conveying – The dust-tight tube prevents spillage and contamination.

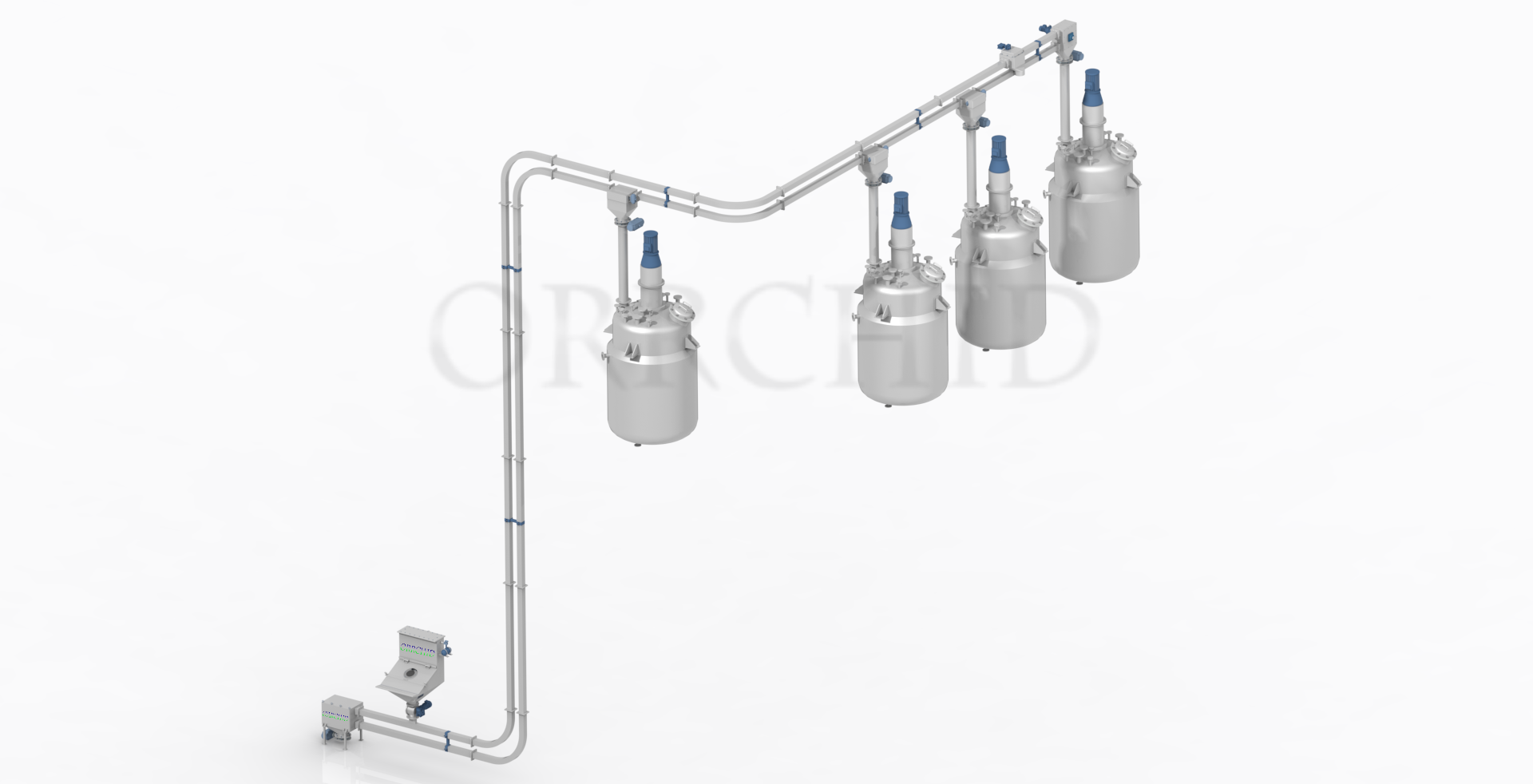

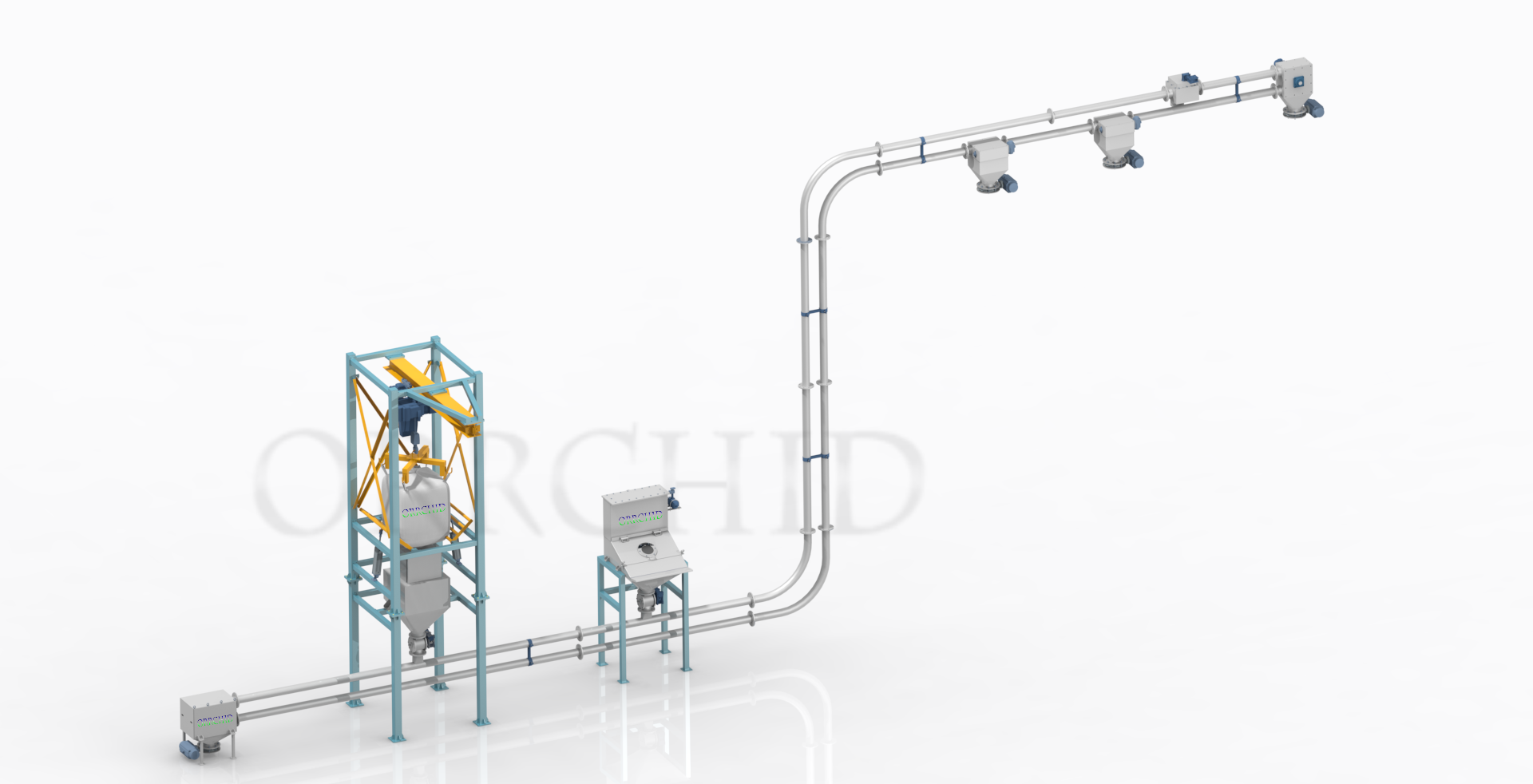

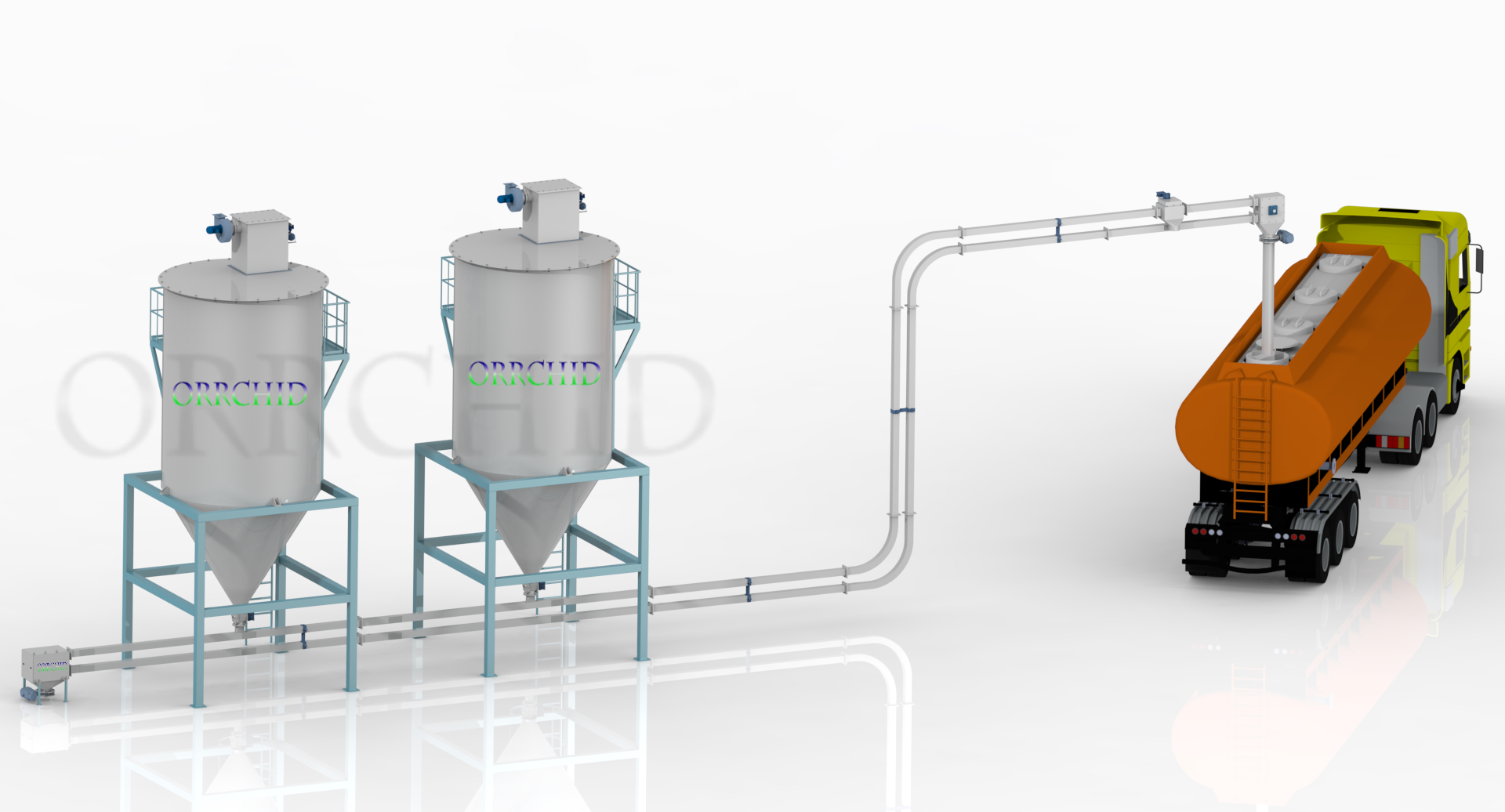

  • Multi-Directional Flow – Capable of horizontal, vertical, and inclined conveying in a single line.
  • Material Discharge – Product is released at the outlet for downstream processes.

👉 Ensures dust-free operation, gentle conveying, and space-saving layouts.

Types of Tube Chain Conveyors

  • Round Tube Chain Conveyor: Circular tube design, best for powders and free-flowing bulk materials, ensures smooth flow and hygienic handling.
  • Square Tube Chain Conveyor: Square/rectangular tube, provides structural rigidity, suited for heavy-duty or abrasive materials, and easy integration in compact plant layouts.

Key Features

  • Enclosed System – Dust-free and contamination-free operation
  • Round & Square Tube Options – Flexibility for different materials
  • Multi-Directional Conveying – Horizontal, vertical, and inclined in one system
  • Gentle Handling – Prevents degradation of fragile products
  • Capacity Range: 1 – 60 m³/hr
  • Material of Construction: MS, SS304, SS316L
  • Energy Efficient – Consumes less power than pneumatic conveyors
  • Long Life – Durable chain and disc design with low maintenance

Applications

  • Food & Beverages: coffee, cocoa, sugar, flour, milk powder, spices
  • Pharmaceuticals & Nutraceuticals: APIs, vitamins, protein powders, nutraceuticals
  • Chemicals & Plastics: pigments, resins, polymers, calcium carbonate
  • Minerals & Construction: cement additives, fly ash, minerals
  • Agriculture: fertilizers, seeds, agrochemicals

Benefits

  • Dust-free and enclosed conveying → cleaner environment
  • Two design options (round & square) → optimized for different industries
  • Gentle handling protects delicate powders
  • Lower energy costs compared to pneumatic conveyors
  • Compact design saves floor space
  • Seamless integration with mixers, bagging, and conveying systems

Technical Highlights

  • Capacity: 1 – 60 m³/hr
  • Conveying Distance: Up to 60 m horizontal, 30 m vertical
  • Tube Types: Round tube & Square tube
  • Material of Construction: MS, SS304, SS316L
  • Options: ATEX/flameproof design, dust extraction, CIP/SIP cleaning
  • Operation: Fully enclosed chain & disc mechanism
Download Brochure Download Brochure

❓ FAQs – Tube Chain Conveyor

  • 1. What is a Tube Chain Conveyor?
    👉 A Tube Chain Conveyor (also called a Dry Chain Disc Conveyor, Tubular Drag Conveyor, or Chain-Disc Conveyor) is an enclosed system that moves bulk materials using a chain and discs inside a tube.
  • 2. What is the difference between round and square tube types?
    • Round Tube: Best for powders, free-flowing bulk materials, and hygienic handling.
    • Square Tube: Best for heavy-duty, abrasive, or compact plant layouts.
  • 3. Can it convey vertically?
    Yes , it can handle horizontal, inclined, and vertical conveying in one layout.
  • 4. What industries use this conveyor?
    Food, pharma, chemicals, plastics, minerals, construction, and agriculture.
  • 5. Why choose it over pneumatic conveyors?
    It offers lower energy consumption, gentler handling, and dust-free enclosed operation.
  • Note
    👉 Orchid’s Tube Chain Conveyor / Dry Chain Disc Conveyor — engineered for enclosed, dust-free, and versatile conveying solutions with round and square tube designs.
