Stainless Steel IBC Lifter & Tilter | Safe, Hygienic, and Efficient IBC Handling Solutions

Ergonomic and Dust-Free Material Handling for Pharma, Food & Chemical Industries

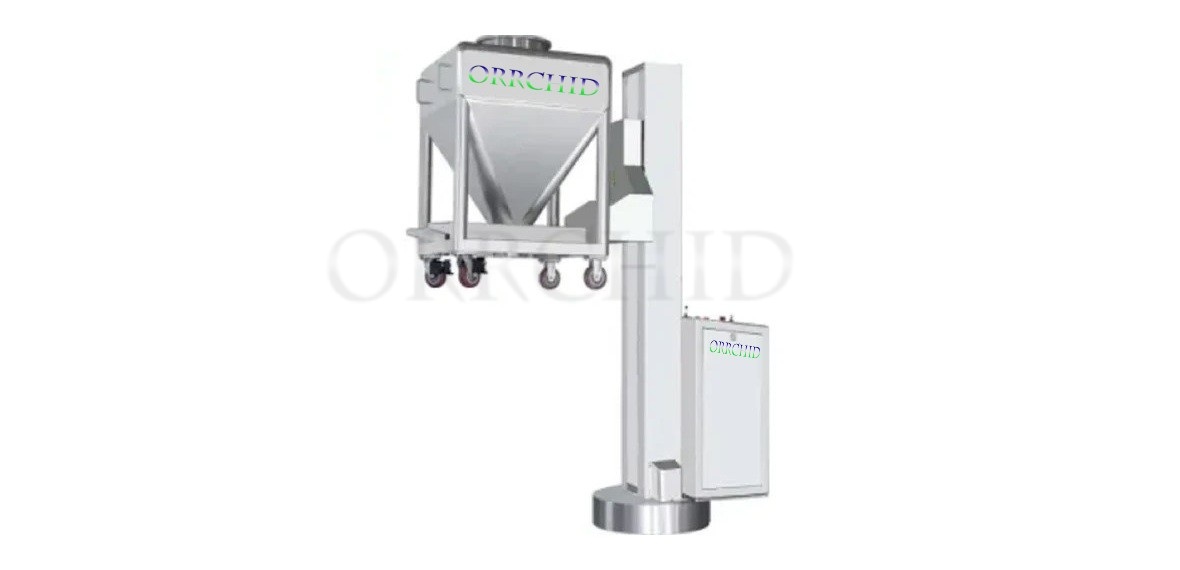

Orchid’s Stainless Steel IBC Lifter & Tilter provides a safe, dust-free, and ergonomic solution for lifting and discharging stainless steel Intermediate Bulk Containers (IBCs). Designed for hygienic powder and liquid handling, this system ensures seamless integration with downstream equipment such as blenders, sifters, and conveyors.

---

Product Overview

The IBC Lifting & Tilting System simplifies controlled lifting, tilting, and discharge of IBCs while maintaining process hygiene and minimizing manual handling. Also known as an IBC Tilter or IBC Discharge Station, it ensures gravity-based, dust-free material transfer with maximum operator safety and process precision.

• Controlled hydraulic or electro-mechanical lifting and tilting
• Safe, dust-free, and ergonomic discharge of powders or liquids
• Seamless integration with blenders, sifters, or conveyors
• Reduces operator fatigue and process downtime

---

How It Works

• IBC Loading: The IBC is placed on the lifter using a pallet truck or forklift.
• Locking System: Safety clamps hold the IBC securely during operation.
• Lifting Operation: Hydraulic or electric drive lifts the IBC to discharge height.
• Tilting & Discharge: The unit tilts up to 120–135° for complete, dust-free emptying.
• Integration: Discharge can feed directly into blenders, sifters, or conveyors.

👉 Ensures dust-free transfer, minimal material residue, and superior operator safety.

---

Key Features

• Handles IBCs from 500 L to 2000 L capacity
• Hydraulic or electric lifting mechanism
• Tilting range: up to 120–135° for complete discharge
• Compatible with SS304 / SS316L IBCs
• Hygienic design with polished contact surfaces
• Safety interlocks and limit switches for protection
• Customizable discharge height (up to 3 meters)
• PLC/HMI-based automation controls (optional)

---

Applications

• Pharmaceuticals – API and powder discharge to blenders or granulators
• Food & Beverages – ingredient, flavoring, and additive handling
• Chemicals & Petrochemicals – powder, resin, or intermediate discharge
• Nutraceuticals & Cosmetics – hygienic bulk raw material transfer
• Paints & Dyes – viscous and semi-solid material discharge

---

Benefits

• Safe and effortless lifting & tilting of heavy IBCs
• Eliminates manual handling and reduces spillage risk
• Maintains product hygiene and integrity
• Ideal for cleanroom & containment operations
• Reduces downtime and improves overall process efficiency

---

Technical Highlights

Parameter	Specification
Capacity	500 – 2000 L (customizable)
Lifting Mechanism	Hydraulic / Electro-mechanical
Tilting Angle	Up to 120–135°
Construction	SS 304 / SS 316L
Finish	Matt / Mirror / Electro-polished
Control	Manual / Push-button / PLC-based
Mounting	Fixed / Mobile Frame
Integration	Compatible with conveyors, sifters, blenders
