Screw Conveyors

Screw Conveyors | U-Trough, Pipe & Mobile Screw Conveyor

Dust-Free & Reliable Conveying Solutions

Orchid’s Screw Conveyors (U-Trough & Pipe Type) ensure dust-free and reliable conveying. Available in fixed, mobile, and trolley-mounted designs for food, pharma, chemical & industrial applications.

Also known as Auger Conveyors, these systems use a helical screw blade inside a trough or pipe to move materials continuously. Available in U-Trough and Pipe (Tubular) designs, these conveyors are versatile for multiple industries including food, pharma, chemicals, plastics, minerals, and agriculture.

Types of Screw Conveyors

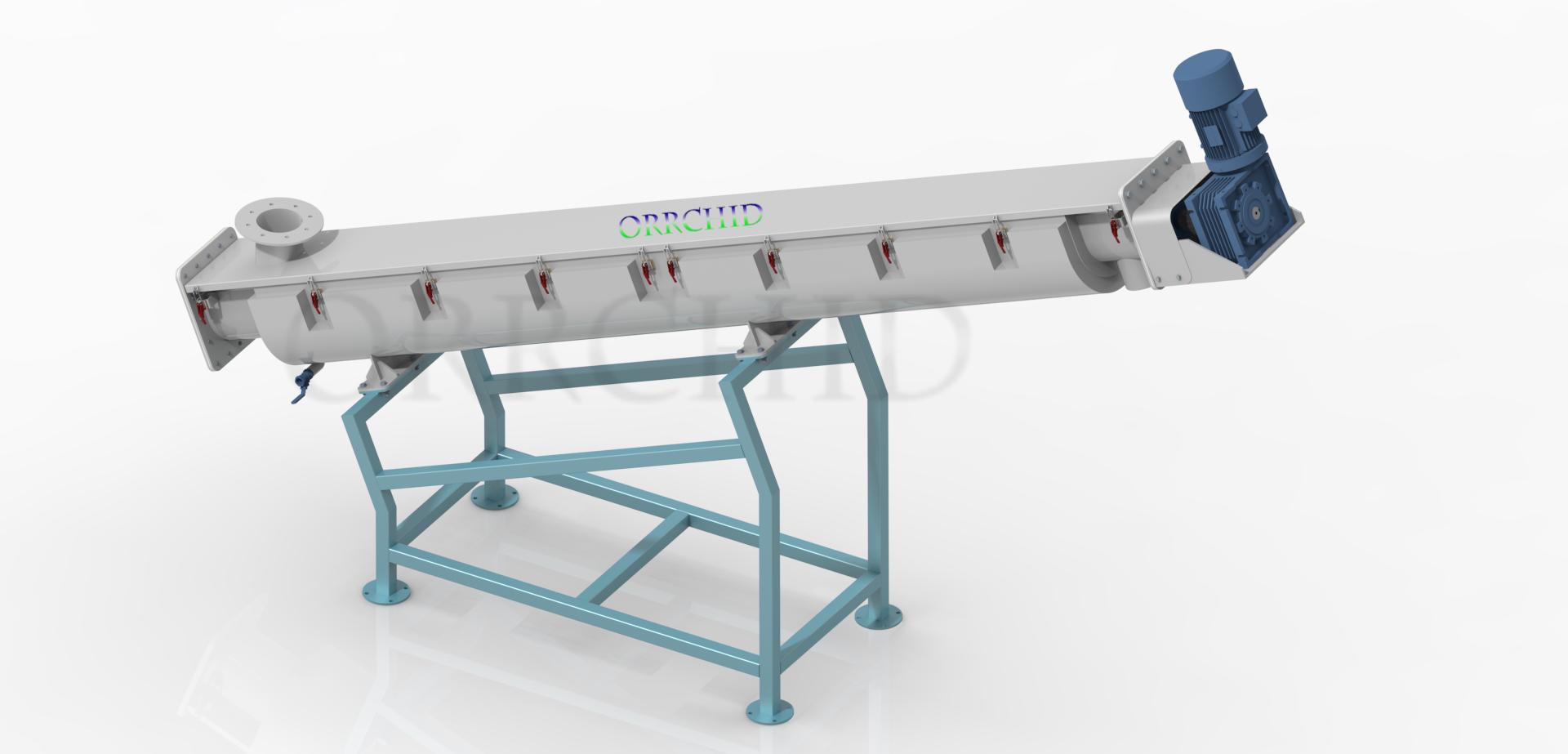

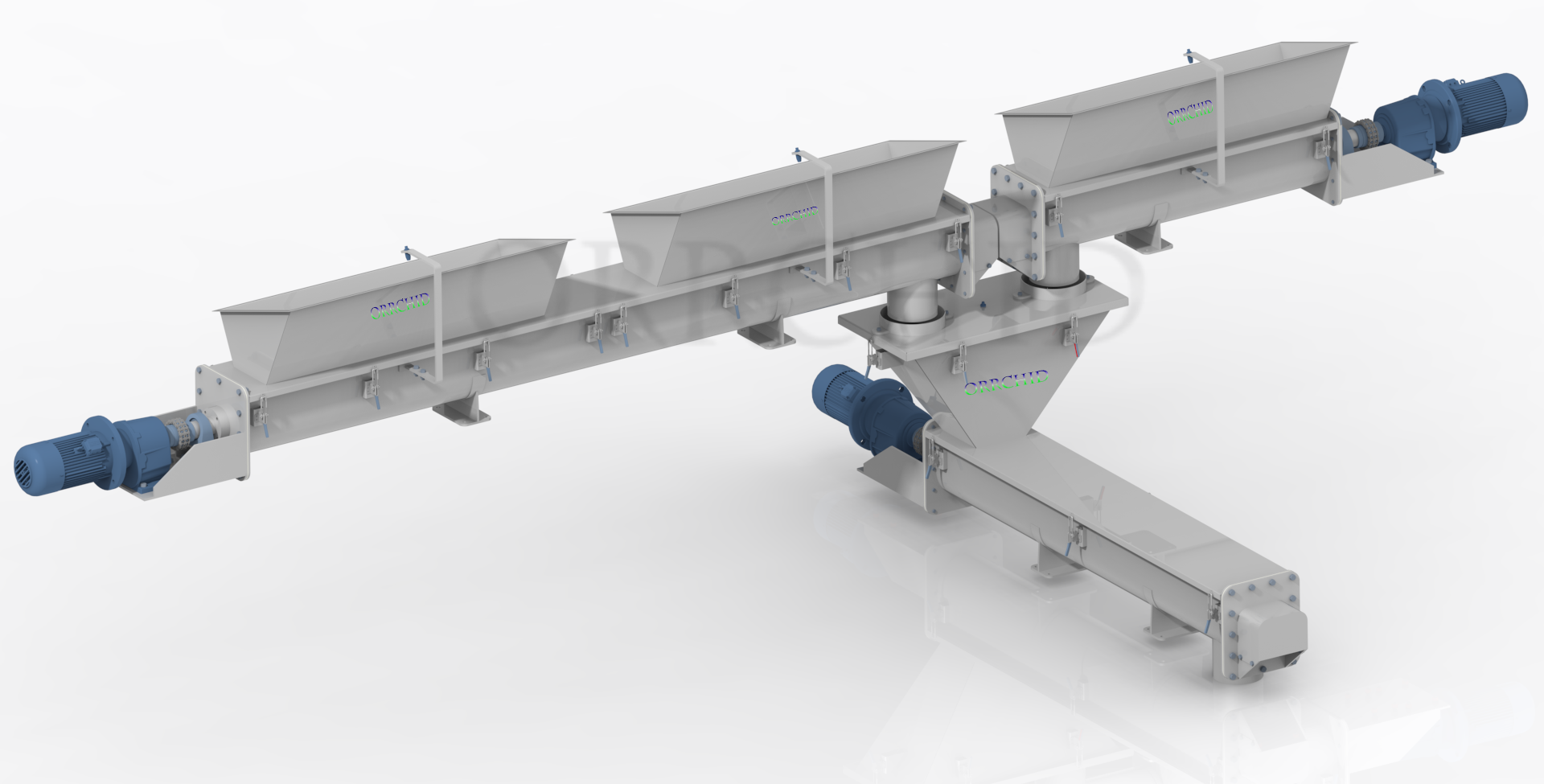

  • U-Trough Screw Conveyor: Open or covered U-shaped trough, best for free-flowing and non-abrasive materials, easy to clean, suitable for short to medium conveying distances.

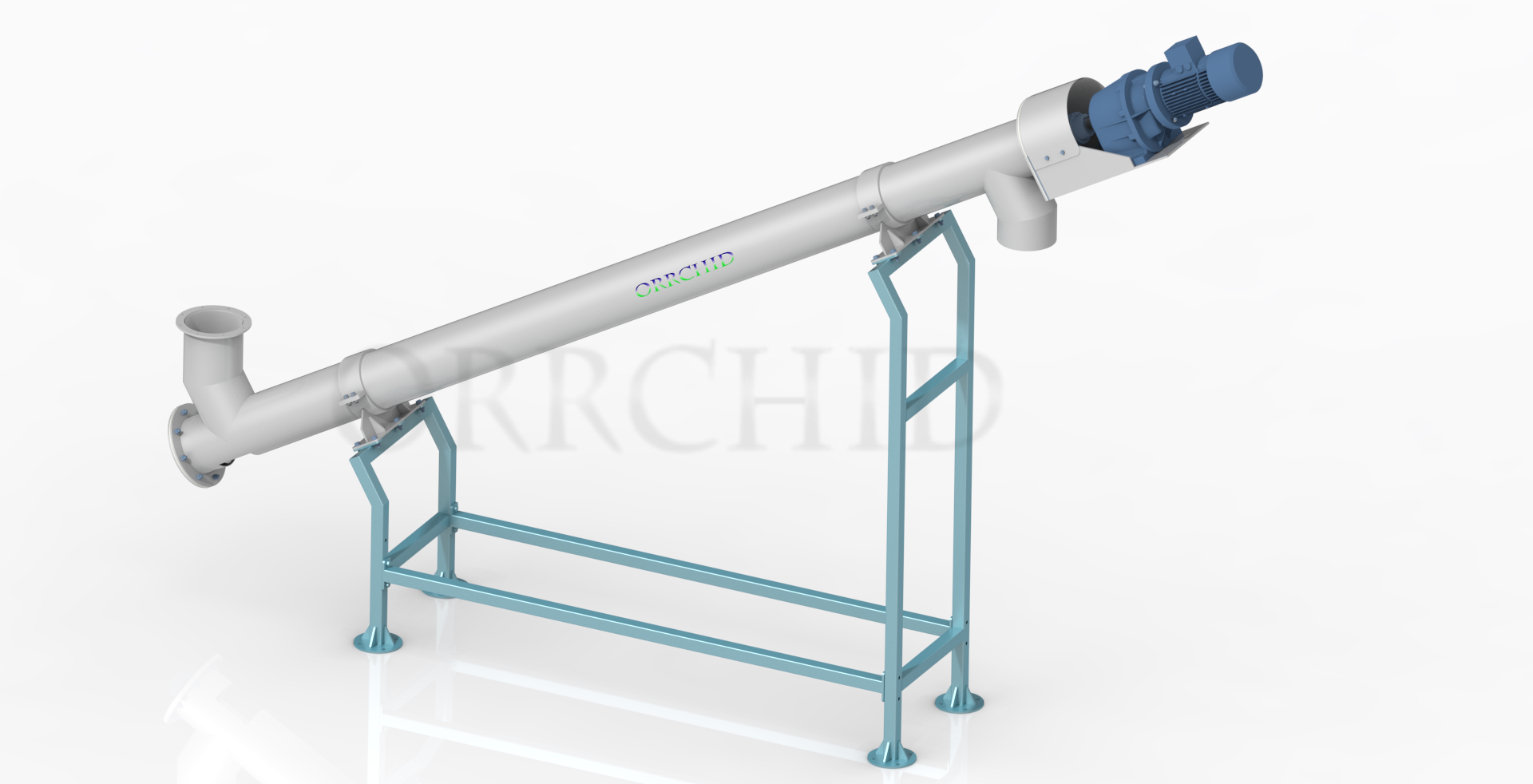

  • Pipe (Tubular) Screw Conveyor: Fully enclosed pipe housing with a rotating screw, ideal for powders, fine granules, and dusty materials, prevents spillage and contamination, can be used for inclined or vertical conveying.

Mobility Option

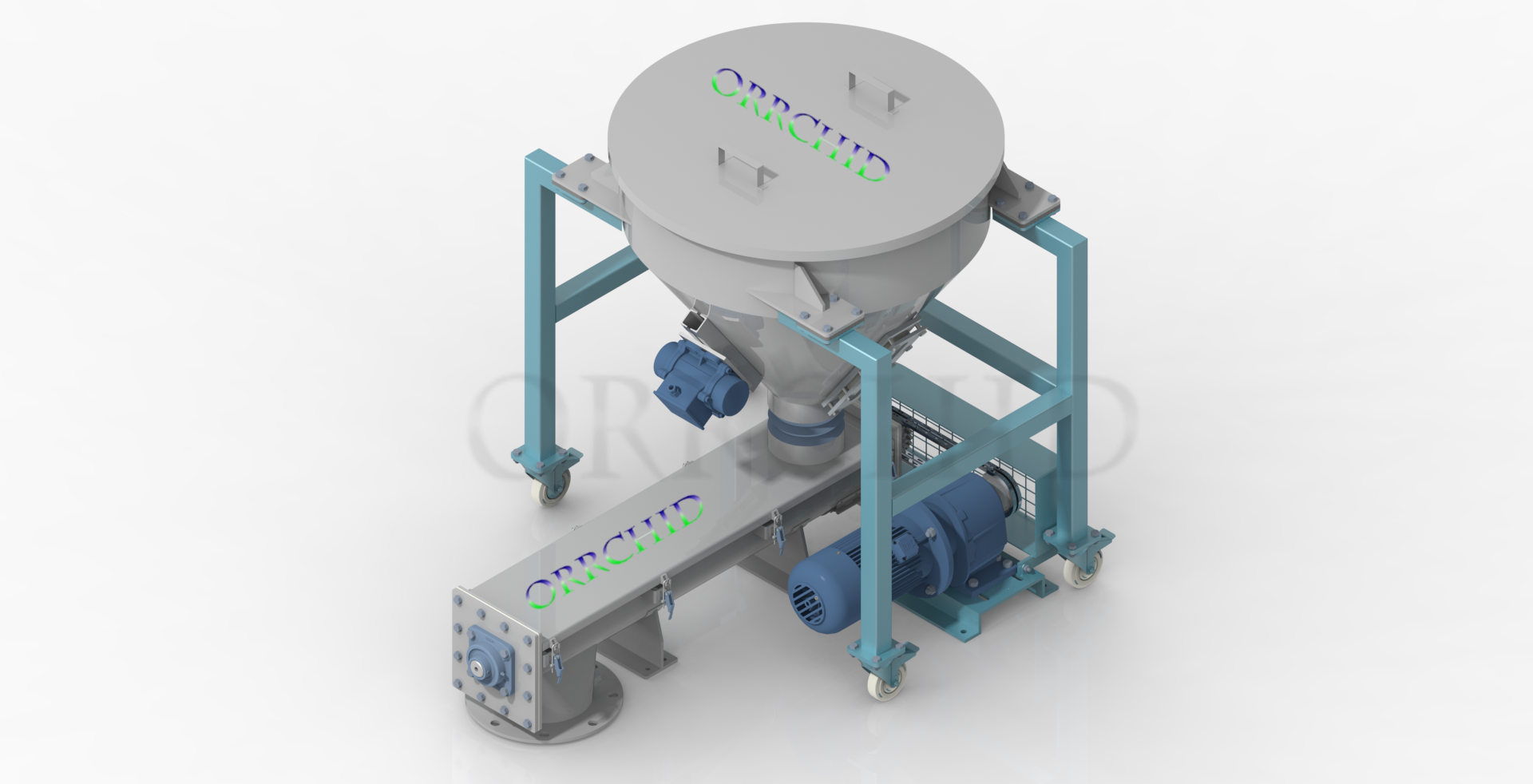

  • Mobile / Trolley-Mounted Screw Conveyor: Portable frame with wheels for easy movement across process areas. Ideal for multi-point feeding, temporary setups, and quick relocation inside the plant. Ensures operational flexibility, space efficiency, and ease of use.

Key Features

  • Available in U-trough and Pipe (Tubular) designs
  • Horizontal, inclined, or vertical conveying
  • Dust-free and contamination-free material transfer
  • Custom-built capacity: 1 – 100 m³/hr
  • Material of construction: MS, SS304, SS316L
  • Option for mobile / trolley-mounted conveyors
  • Easy to install, operate, and maintain
  • Designed for continuous, reliable operation

Applications

  • Food & Beverages: sugar, flour, coffee, milk powder, starch, spices
  • Pharmaceuticals & Nutraceuticals: APIs, vitamins, nutraceutical powders
  • Chemicals & Plastics: pigments, resins, polymers, calcium carbonate
  • Construction & Minerals: cement, fly ash, gypsum, minerals
  • Agriculture: grains, seeds, fertilizers, agrochemicals

Benefits

  • Flexible designs: U-trough or Pipe Screw
  • Mobile and trolley versions for maximum plant flexibility
  • Gentle handling → prevents product degradation
  • Suitable for powders, granules, and bulk solids
  • Enclosed design ensures dust-free conveying
  • Robust and long-lasting with minimal maintenance

Technical Highlights

  • Capacity: 1 – 100 m³/hr
  • Conveying Distance: Up to 30 m horizontal, 20 m inclined
  • Types: U-Trough & Pipe (Tubular) Screw Conveyors
  • Mobility Options: Mobile screw conveyors & Trolley screw conveyors
  • Construction: MS, SS304, SS316L
  • Drive Options: Direct drive or geared motor
  • Special Options: Jacketed screw (heating/cooling), flameproof design
Download Brochure Download Brochure

❓ FAQs – Screw Conveyor

  • 1. What is a Screw Conveyor?
    👉 A screw conveyor (or auger conveyor) uses a helical screw blade to move bulk materials inside a trough or pipe.
  • 2. What is the difference between U-trough and Pipe Screw Conveyors?
    • U-Trough Screw Conveyor → Open/covered U-shaped trough, easy maintenance, best for free-flowing materials.
    • Pipe Screw Conveyor → Fully enclosed pipe, dust-free, ideal for powders & fine materials.
  • 3. Do you provide mobile/trolley screw conveyors?
    Yes , both U-trough and Pipe Screw Conveyors can be built in mobile or trolley-mounted versions for plant flexibility.
  • 4. Which industries use screw conveyors?
    Food, pharma, chemicals, plastics, minerals, construction, and agriculture.
  • 5. Can screw conveyors handle vertical conveying?
    Yes, pipe/tubular screw conveyors can be designed for inclined and vertical applications.
  • Note
    👉 Orchid’s Screw Conveyors — engineered for dust-free, reliable, and flexible material handling with U-trough, pipe, and mobile/trolley options.
