Jumbo Bag Filling Machines

  • Orchid
  • Jumbo Bag Filling Machines
Jumbo Bag Filling Machine 01

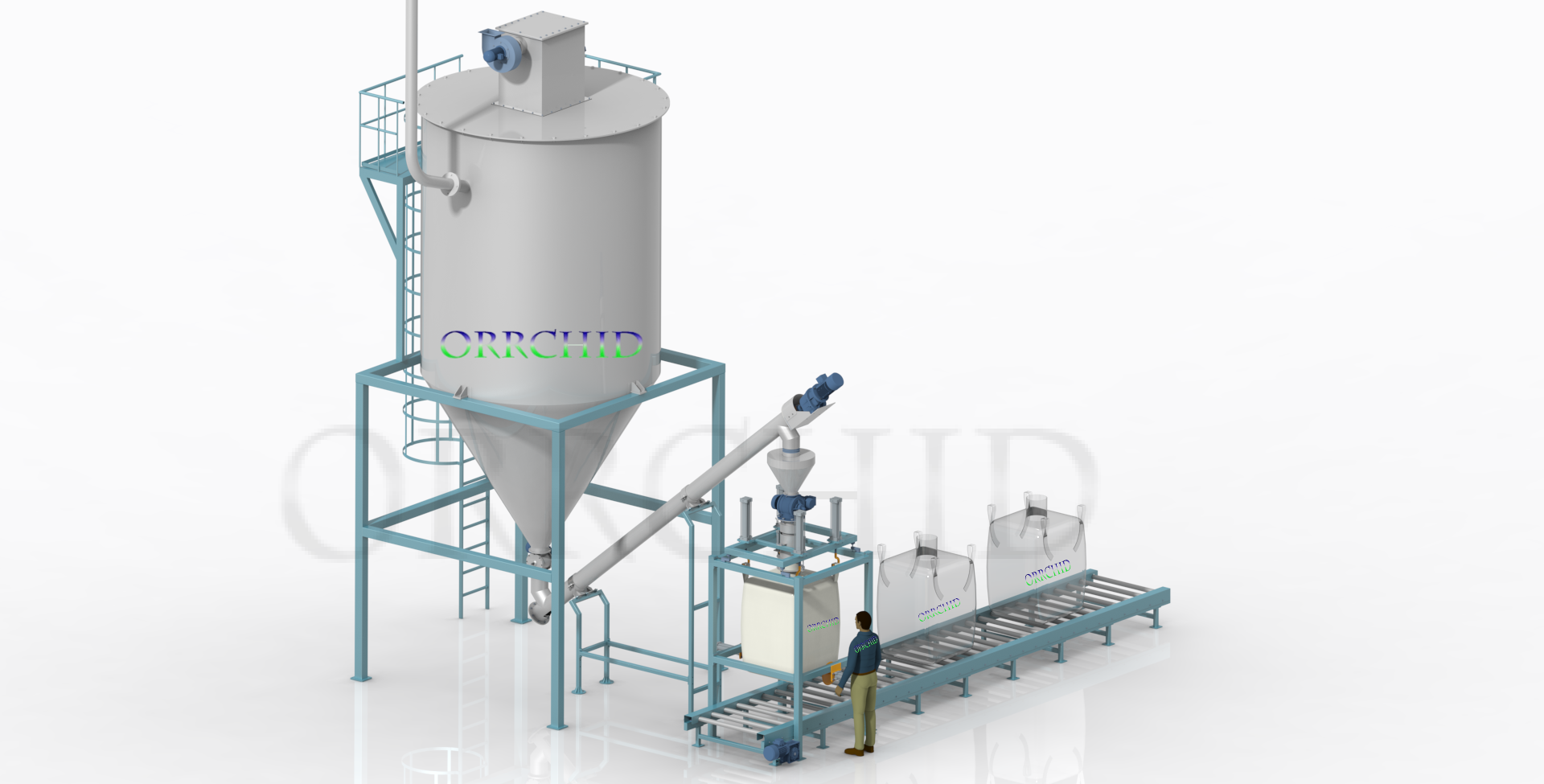

Jumbo Bag Filling Machine 02

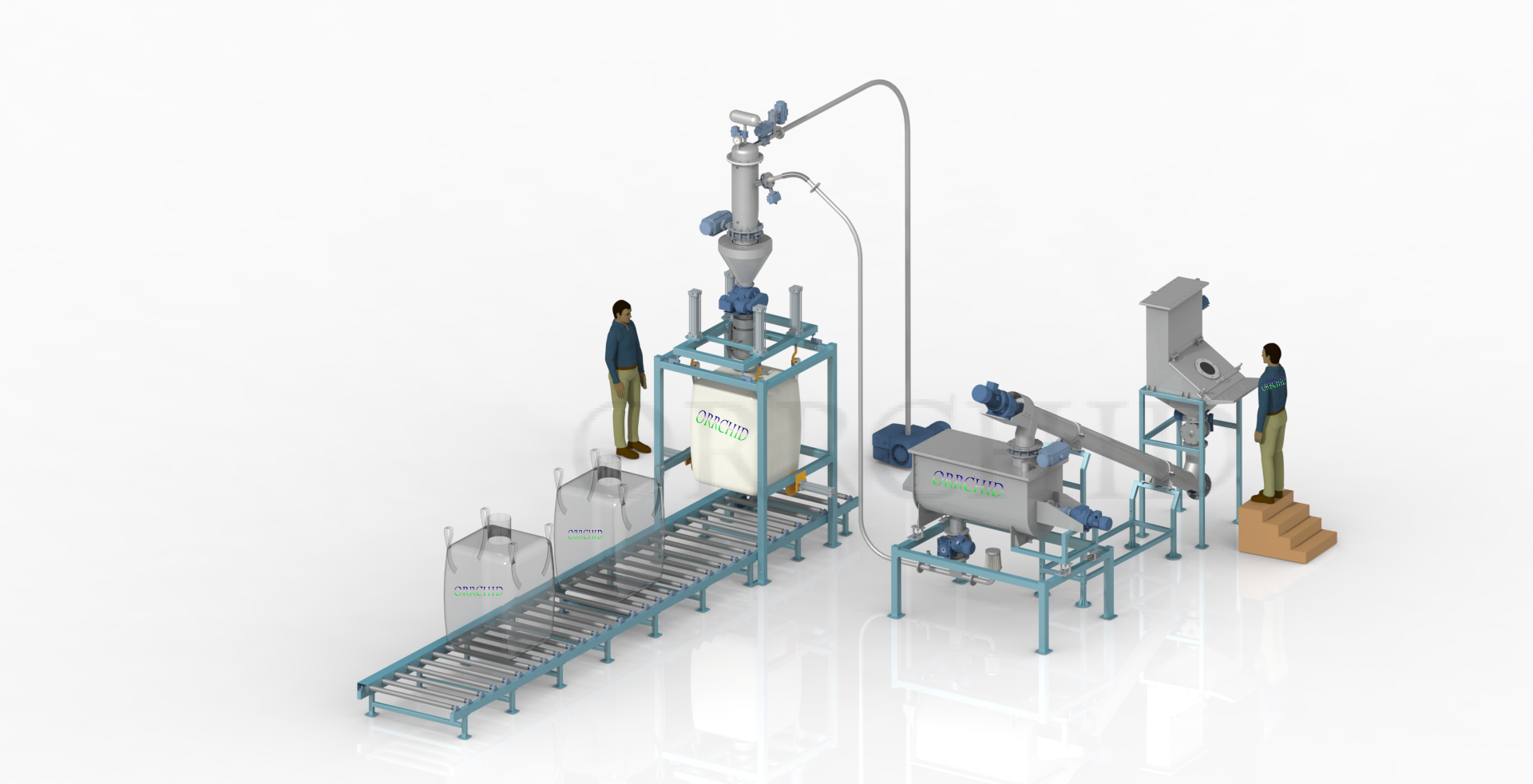

Jumbo Bag Filling Machine 03

Jumbo Bag Filling Station (FIBC Filling Machine)

Dust-Free, High-Capacity & Reliable Bulk Bagging Solutions

Orchid’s Jumbo Bag Filling Stations — also known as Bulk Bag Fillers, FIBC Filling Systems, Big Bag Filling Machines, or Super Sack Fillers — are designed for accurate, efficient, and dust-free filling of bulk solids, powders, and granules into jumbo bags (500–2000 kg). Built with heavy-duty frames, precision weighing, and integrated dust control, our FIBC filling machines provide the safest and most reliable way to package large volumes while reducing labor and handling costs.

How Our Jumbo Bag Filling Systems Work

  • Bag Placement – Operator hangs an empty jumbo/FIBC bag on the filling station hooks.
  • Bag Inflation & Sealing – The bag is inflated using low-pressure air; an inflatable neck seal prevents dust escape.
  • Material Feeding – Product enters via gravity, screw feeder, or pneumatic conveyor, depending on material flow.
  • Weighing & Filling – Load cells ensure accurate filling up to ±0.5%.
  • Vibration & Compaction (Optional) – Settles and compacts material for stability.
  • Bag Discharge – Filled bag is released onto pallet or conveyor for easy handling.

Key Features

  • Bag Capacity: 500–2000 kg
  • Precision Weighing: ±0.5% accuracy
  • Dust-Free Filling: Inflatable neck seals & de-dusting ports
  • Flexible Feeding: Gravity, screw, or pneumatic
  • Bag Stability: Vibrating compaction platform
  • Heavy-Duty Frame for continuous operation
  • Operator Safety & ergonomic bag hooks
  • Automation Ready: Semi or fully automatic with PLC + HMI

Applications Across Industries

  • Food & Spices → Starch, flour, sugar, milk powder, coffee
  • Chemicals & Petrochemicals → Fertilizers, catalysts, minerals
  • Pharma & Nutraceuticals → APIs, excipients, powders
  • Plastics & Polymers → Granules, pigments, resins
  • Paints & Dyes → Pigments, fillers, TiO₂
  • Power & Energy → Fly ash, biomass, cement

Benefits of Choosing Orchid

  • Handles large capacities (500–2000 kg per bag) → fewer bags, reduced labor
  • Cleaner operation with dust collection and inflatable seals
  • Higher productivity compared to small bag filling
  • Cost-efficient packaging → reduced material loss & handling costs
  • Flexible design → compatible with FIBC, super sacks, and big bags
  • Easy integration with conveyors, palletizers, and wrapping lines
  • Customizable builds → MS for heavy-duty use, SS304/316L for food & pharma

Technical Highlights

  • Bag Sizes: 500–2000 kg
  • Accuracy: ±0.5%
  • Feeding Methods: Gravity, screw feeder, pneumatic conveying
  • Output Capacity: 10–20 bags/hour (depending on product & bag size)
  • Construction: MS or SS304/316L contact parts
  • Automation: PLC + HMI with recipe storage, alarms, optional data logging
  • Optional Features: Bag inflation system, vibration/compaction table, dust extraction & HEPA filters, flameproof electricals, palletizing & wrapping integration
Download Brochure Download Brochure

❓ FAQ – Jumbo Bag Filling Stations

  • 1. What is a Jumbo Bag Filling Machine (FIBC Filler)?
    👉 A bulk packaging system designed to fill flexible intermediate bulk containers (FIBC) or super sacks with powders, granules, or bulk solids.
  • 2. What bag sizes can Orchid’s jumbo bag filling machines handle?
    👉 They are designed for 500–2000 kg FIBC bags, with adjustable height frames for different bag sizes.
  • 3. Are these systems suitable for fine powders?
    Yes. With screw feeding, inflatable seals, and dust extraction, fine powders can be filled without spillage.
  • 4. What industries benefit most from jumbo bag filling?
    👉 Industries handling large volumes such as cement, fly ash, chemicals, food, and polymers gain the most due to reduced handling costs and higher throughput.
  • 5. Can Orchid’s jumbo bag fillers be automated?
    Absolutely. They can be upgraded with automatic bag loop release, conveyors, palletizers, and robotic handling for a fully automated packaging line.
  • Note
    👉 Orchid’s Jumbo Bag Filling Stations — engineered for high-capacity, dust-free, and accurate bulk packaging.
